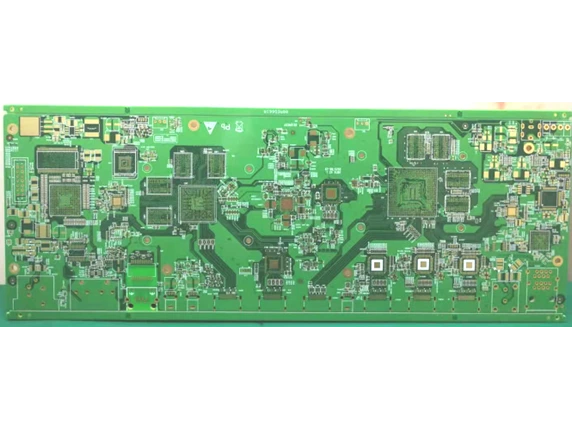

Product design

Layers: 10L
Board thickness: 2.0mm±0.1mm
Final finish: Immersion Gold
Line width/space: 0.10mm/0.10mm
Copper Thickness: 1.5 oz
Application: Videoconferencing





Surface Finishes Capability
Layer Count: 2-24 Layers
Board Thickness: 0.2-3.2mm
High Density Interconnection: 1+n+1,1+1+n+1+1,2+n+2,3+n+3,4+n+4
Material: EMCNANYASYTECHITEQTUCDOOSANROGERSMGCShowa DenkoISOLAVENTEC
Environmental Products: HDI ROHS halogen- free
ENIG(Electroless Nickel/Immersion Gold) Au/Ni Immersion 1 to 8 u〞,Ni120-250 u
Organic Solder ability Preservativesentek plus Ht,Preflux F2 Lx0.2-0.5um
Electric nickel gold Soft Gold,Hard Gold ),Connecting Finge
HASL-lead free Sn thickness 1-40um
Printing dynamic QR code
Liquid photosensitive solder prevent mask
May Peeling off solder mask
Electric Conductive Carbon oil



Capability Standard Advanced Capability Standard Advanced Capability Standard Advanced
Line width space 2.36/2.36mil 2.0/2.0mil NPth Aperture size ±2mil ±1.5mil Min. SMT/QFP Pitch 10mil NA
Max Copper foil thickness 2oz 4oz Hole location Accuracy ±3mil ±2mil Min. BGA Pitch 12mil NA
Min. via hole  size Min:0.2mm Min:0.15mm Distance from the center of the hole to the center of the hole ±4mil ±3mil

Max. Test Points/Board

(Universal ET)

Bed of Nail Test:16000 NA
Min. blind hole size Min:0.1mm Min:0.05mm Hole to Edge Precision ±3mil ±2mil Flying Probe Test:1-∞
Minimum semi-metallized hole Min:0.45mm Min:0.40mm Layer to layer registration ±4mil ±3mil v-cut Depthing ±4mil ±3mil
Buried hole 4-16 layer 24 layer Shape Size tolerance ±4mil ±3mil v-cut  Angel 20°、30°、45° NA
Max production borad size 520mmX620mm 540mmX640mm Impedance tolerances ±10% ±8% v-cut precision ±4mil ±3mil
Max Aspect ratio 8:01 10:01 Min.Solder Mask Dam Width Green Oil:3mil Green Oil:2.5mil
line width space ±20% ±10% Other:4.5mil Other:4mil
Pth Aperture size ±3mil ±2mil S/M Registration ±1.5mil ±1.2mil
